After months of procrastination (something I am very good at) I am finally committed to the storage yard extension. Not the most exciting or indeed photogenic subject I am afraid but it has to be done. I will try and relieve the tedium with the occasional loco shot.

The existing yard was one of the first sections of Granby that I built :



Over the past 14 years Granby's rolling stock has grown rather a lot . I am now squeezing 18 trains of varying lengths into the 10 storage sidings. Operating has become increasingly cumbersome particularly as I now favour out and back routines rather than tail chasing

This screenshot of the RR&Co schematic for the storage yard will, perhaps, assist in defining some of the problems



To increase "out and back" opportunities,regular followers may recall that I have devoted a lot of time and effort to the Storage Turntable area- (bottom left in the schematic). Completed last summer the TT sidings can store at least  5 relief locos thus providing a rapid turn round for Up trains arriving in the bottom siding D5 "Barmouth" .. Unfortunately there are very limited storage opportunities for the "turned " train without pulling it out on to the Down Main and backing it into one of the other down sidings.

Hindsight is a wonderful thing- if I were starting again I would design it differently. As that is not possible the compromise solution is to create some additional sidings in the opposite corner to the TT. (bottom right in the schematic)

The space is currently occupied by some terraced houses and factory buildings:




 As you can see, the buildings are not very obvious because of the large Mill and general activity in the foreground




Weeks to build- hours to remove:




The Metcalfe buildings will not be binned- they will eventually be use to rejuvenate the window sill seen all too often behind Granby Station.

Replacing the back scene may be an issue but that is for the future. Right now I just want to make sure the cork is properly weighted down! ,



Best wishes from the construction site

Looks like you'll be a happy modeller after the three bottles of wine.  ;-)

[user=1120]peterm[/user] wrote:

Looks like you'll be a happy modeller after the three bottles of wine.  ;-)

Not sure, he is a happy modeller because of the wine. The corks are still in!  ;-)

[user=2172]Claus Ellef[/user] wrote:

[user=1120]peterm[/user] wrote:

Looks like you'll be a happy modeller after the three bottles of wine.  ;-)

Not sure, he is a happy modeller because of the wine. The corks are still in!  ;-)

Only because he's put 'em in.  :)

Dont get too excited guys. They are the last three bottles of a failed experiment in home made wine.  :sad: Probably all they are fit for.

I shudder to think what Petermac or Longchap would make of that! :lol:

I admire the courage to take up a well established part of Granby to improve operations.  It will be interesting to see your plans develop.

Michael

Duplicate post!

[user=434]John Dew[/user] wrote:

Dont get too excited guys. They are the last three bottles of a failed experiment in home made wine.  :sad: Probably all they are fit for.

I shudder to think what Petermac or Longchap would make of that! :lol:

I’m not knocking anyone’s attempt of making something, it shows  dedication and determination to produce something with your own hands,  â€˜tis good!

However, as the professionals produce excellent wines from vines  growing the other side of our garden wall, why bother doing it myself?  Tis very good!!

Mind you, a side effect of my gallbladder problem has been not being  able to taste wine, as it all tastes very bad! Hopefully this is only  temporary, now the gallbladder seems to be settling down.

Cheers,

Bill

What a surprise that the gall bladder can affect taste. The body's a complex thing all right. At least my kidney problem hasn't affected my taste sense so I can still enjoy the Scottish water of life, albeit in smaller quantities.  :)

It's a bold move John but you obviously know what you're doing.   :hmm

I hope you're not tempted to move along towards the storage sidings - I love that area with the low relief houses hiding it all.

Very much looking forward to seeing how it progresses - more superb Granby developments …………….. :Happy

I can't comment on the wine bottles because I can't quite make out the labels - from what bit I can see, they might be either Petrus or Latour but I could be mistaken ………………… :cheers

[user=6]Petermac[/user] wrote:

It's a bold move John but you obviously know what you're doing.   :hmm

I hope you're not tempted to move along towards the storage sidings - I love that area with the low relief houses hiding it all.

Very much looking forward to seeing how it progresses - more superb Granby developments …………….. :Happy

I can't comment on the wine bottles because I can't quite make out the labels - from what bit I can see, they might be either Petrus or Latour but I could be mistaken ……..…………. :cheers

Very droll!    . I think I have, at last, found a good use for them as rail weights!

No worries with the Terraced House screen- they will remain in place. I am just trying to squeeze some more sidings into the corner on the other side of the storage yard exit.

Hello John,

I'm sure it's true, it must be, as so many experienced modellers have told me that, like Panniers, you will never have too many storage sidings. I've learned the lesson well, so I will resist quoting those sage words back to you John, but thank you instead for the wise reminder that I need to squeeze in even more storage that I thought possible, when I get into the mainline part of my own railway.

Good to know that the terraces are staying and bon courage with yet another meaningful Granby project.

Very best,

Bill

My apologies for not replying to you Bill  :oops: but nevertheless belated thanks for the vote of confidence. As you can see,still a long way to go.

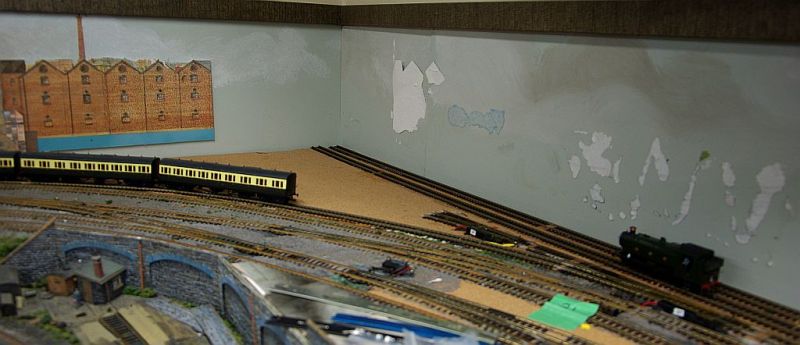

I left you all with this scene of desolation as I started the long awaited storage yard extension




At close of play today: 5 turnouts (#94-#98) are now fully functioning and connecting 3 new sidings to D5 the main Down storage siding :



So far I have added about 11' of storage space - A 5 and 4 carriage siding against the wall and a a second 4 car that curves around at the front, parallel to the main line.

There is now a pause as I await the arrival from Liverpool of two more points. Once they are installed, I hope to contrive one more 4 car siding and three 2/3 car sidings. I had hope to get a second 5 car siding but sadly it didnt work out.

It might might not sound like a great dividend for all this effort but I will be able to add at least two more medium length trains. More importantly it will remove a number of irritating operational log jams.

It has not been a ton of fun. "Close of play" was a somewhat ill-chosen metaphor. During the 15 year development  of Granby I have never found retro fits particularly enjoyable. This has been no exception.

Installing the point motor for turnout #95 was a nightmare. The many neat, precision modellers whose work I so admire might want to skip this section.



The only place for the motor was against the backscene wall. The wall has bowed, fortunately not enough to foul passing trains. The precisely cut aperture was achieved by this very elderly gentleman standing on a foot stool and leaning over a 4' wide baseboard.

Surface mounted motors are very finicky. The throw arm can bounce out of the turnout arm. To prevent this I inserted a brass rod into the turnout arm and capped it with a white plastic cylinder which just fitted inside the aperture in the motor arm.

The turnout motors are from Rails of Sheffield:



So far I am very impressed with them. Although they are still quite finicky to align they do not insist on being absolutely at right angles like the Peco version. I get the sense they are more powerful. I have installed 5 now and they have never hesitated to throw a point - not always the case with Peco. Added bonus they are a little slimmer in outline which sure helped.

 DCC only requires two wires - so the electrical installation was quite straightforward:






 ,

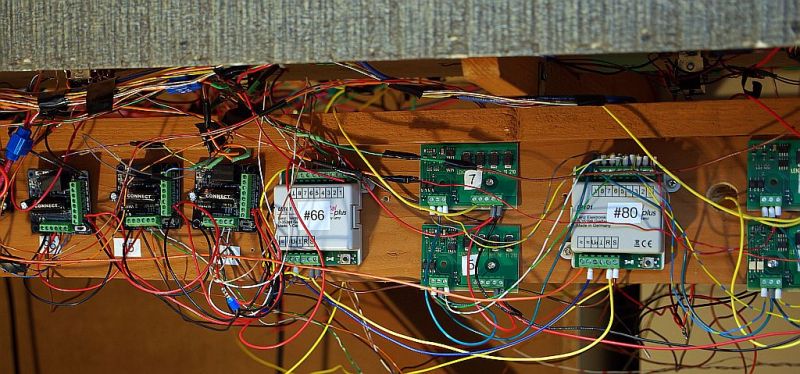

On the right - Feed Back decoder #80 connected to four occupancy detector - to cover the 7 new sidings and a loco spur.

To the left of #66 (an existing Feed Back decoder) are Turnout decoders for #94-#96. These are also from Rails of Sheffield. Made by DCC Concepts they are quite a nifty device - throwing the turnout on command from either the DCC throttle or RR&Co. They switch frog polarity and have connections, which I dont use, for manual switches and LEDs
